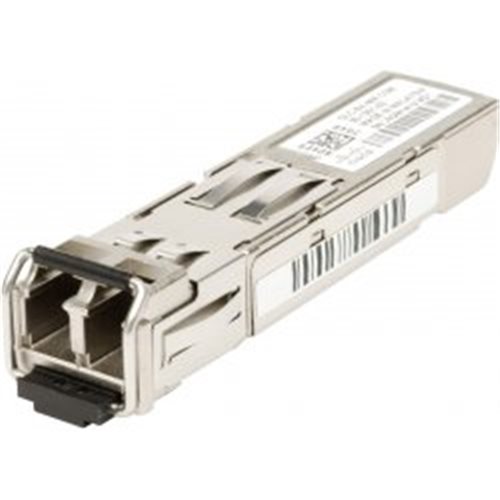

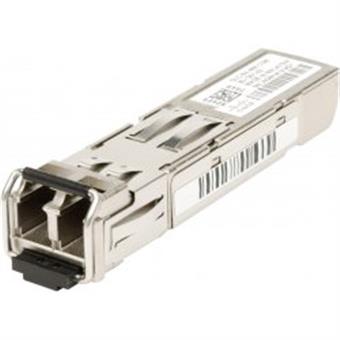

Cisco GLC-SX-MMD, 1000BASE-SX SFP

1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector

1000BASE-SX SFP for Multimode Fiber Only
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 µm multimode fiber links up to 550 m and on 62.5 µm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 µm multimode fiber cable.

Specifications
Part Number

• GLC-SX-MMD

Device Type

• Cisco SFP

Package

• SFP

Data Rate

• 1.25/1.0625Gbps

Wavelength

• 850nm

Distance/Power Budget

• 550m

Optical Components

• LD: VCSEL
• PD: PIN

Output Power

• -9~-4dBm

Receiver Sensitivity

• -17dBm

Power Supply Voltage

• 3.3V

Connector

• Dual LC

Fiber Type

• MMF

Operating Temperature

• -10~80 °C

DDMI

• With

Application

• Gigabit Ethernet

Compatiblity

• 100% Cisco Compatible
